SPARTAN-6 FPGA SP601 EVALUATION KIT
What’s Inside the SP601 Evaluation Kit
?  SP601 Base Board with the XC6LX16-CS324 FPGA
?  ISE ? Design Suite WebPACK? Edition
– Includes PlanAhead? Design Analysis Tool
– Timing Driven Place and Route, SmartGuide?,
and SmartXplorer Technology
?  Documentation
– Hardware Setup Guide
– Getting Started Guide
– Hardware User Guide
– Reference Designs User Guide
?  Schematics and PCB files

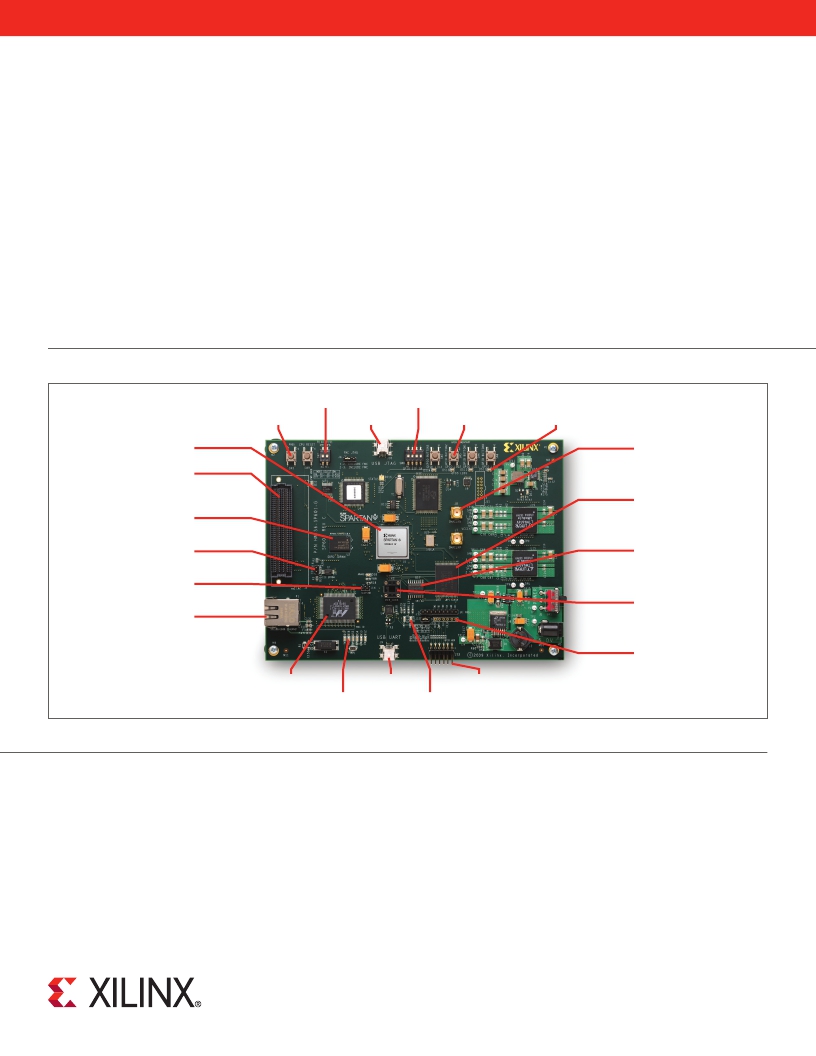

B OAR D F EATU R ES
Mode
Switches
4x DIP
Switches
?  Universal 5V power supply
?  Cables: 2 USB, 1 Ethernet
?  Reference Designs and Demos
– Board Diagnostic Demo
– Base System Reference Design featuring DSP48,
Gigabit Ethernet, and DDR2 Memory Controller
– Multiboot Reference Design, featuring fail-safe
configuration
– Hardened Memory Controller Reference Design
?  Reference designs, demos, documentation, and
applications delivered on Xilinx.com and can be
downloaded from www.xilinx.com/sp601
FPGA: XC6SLX16
CS324-2CES Spartan-6
FMC-LPC Connector
(68 single-ended or
34 differential user
de?ned signals)
PROG & Reset
Push Buttons
USB JTAG
Download Port
4x Push Buttons
4x LEDs
SMA Connectors (Differential)
16MB Parallel (BPI) Linear Flash
DDR2
IIC BUS Connection & IIC EEPROM
Quad SPI Flash
Suspend/Awake
User Clock Socket
RJ45
SPI Programming/Header
10/100/1000 Tri-Speed
Ethernet PHY
Serial (UART)/USB
8x User I/O
Diligent 2x6 Header
Ethernet Status
LEDs
FPGA INIT,
DONE LEDs
Take the NEXT STEP
For more information, support, documents, and reference designs, or to purchase, please visit www.xilinx.com/sp601
Part Number: EK-S6-SP601-G
